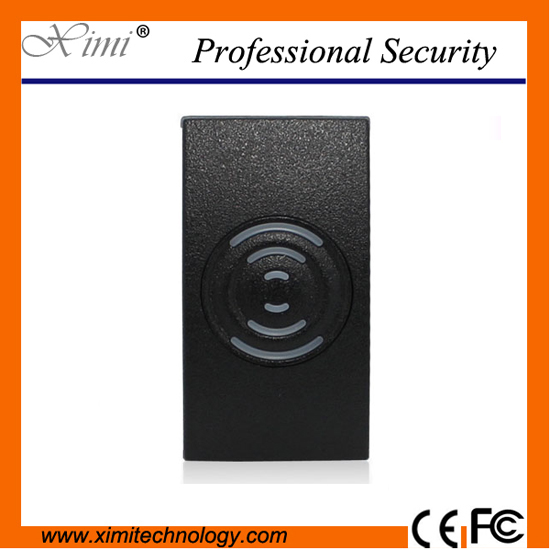

KR200 card reader 13.56MHZ IC card reader IP65 waterproof smart card reader 125KHZ RFID card reader

* 125kHz / 13.56MHz Proximity Card Reader with keypad

* Read Range: Up to 5—7CM

* 26 / 34 bit Wiegand ( default )

* External LED Control

* External Buzzer Control

* Indoor / Outdoor Operation

* Solid Epoxy Potted

* Waterproof IP65

* Reverse Polarity Protection

1).5-16 V Operating voltages

2).International Standards Wigand 26Bits.

3).More than 50mm Reading Range

4).All in One Antenna

5).Support EM-ID or 13.56mhz Serial Number

6).External control Audio / Visual Indication: Internal LED and Buzzer

7).Optional Water-proof function for outside use.

Read Range	Up to 5—7cm
Power / Current	DC 6-14V / Max. 70mA
Input Port	2ea ( External LED Control, External Buzzer Control
Output Format	Wiegand26/34
LED Indicator	2 Color LED Indicators ( Red and Green )
Beeper	YES
Operating Temperature	- 20 to + 65
Index of Protection	IP65
Color	Black
Material	ABS + PC with Texture
Weight	120g
