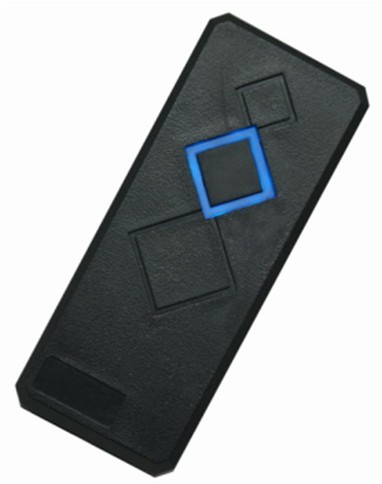

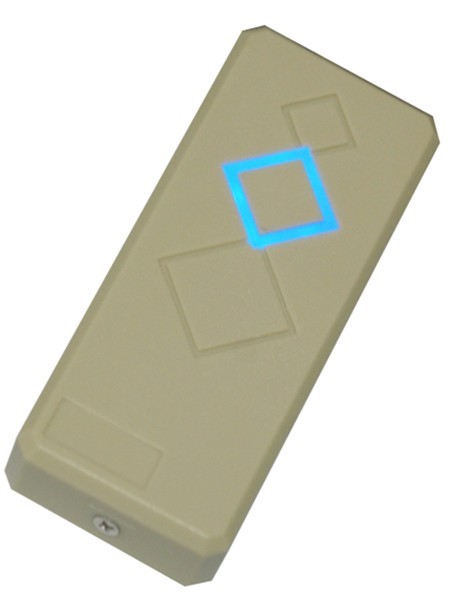

X008E/M small size card reader

X008E/M small size card reader

X008E/M small size card reader
Product name : X008E/M small size card reader
Item : X008
Details :

Product features

End of the series 125 KHZ and 13.56 MHz non-contact rf ID card and M1 wiggins card reader, all adopt advanced rf receiving circuit design and industrial-grade embedded microcontroller controller, combined with efficient decoding algorithm, the completion of 64 bits of the Read - Only uem4100 compatible ID card to receive, this series of readers is receiving high sensitivity, small working current, single dc power supply, low price, high performance, etc.
U apply to access control, attendance, charges, guard against theft, patrolling, building intercom, car park management system, highway, one cartoon, e-commerce and other various rfid applications.

Product advantage

Metal shielding and reader interference resistance ability.
Stable performance and advanced anti freezing circuit design, anti surge protection, prevent to misconnect.
Using pure digital rf base station chip imports, error free design.
Intelligent sound and light control mode (blue light instructions give you brand-new visual effect).
Buzzer sound is ringing loud and clear, not interference modulation.
Long transmission distance, up to 100 meters.
Card reader with resin sealant was imported from Japan, sealed type, is suitable for indoor and outdoor use.
The connection mode of international standard. (at the same time support WG26 and WG34, just put the line and ground sub WG26/34 switching can be realized, and convenient and applicable.)
Conform to the national standard GB/T17626.4 / IEC61000-4-4 standard electrical transient bursts of immunity test (4000 v, 5 KHZ supreme test parameters).

Connection mode

BEEP line (yellow) : low level buzzer sirens
Leds (blue) : the low level green light
Cable: D0 (green), D1 (white) output standard Wiegand26bit/Wiegand34bit data
The power cord input the positive black ground wire (red) : 9-16 VDC suggest 12 VDC

Technical parameters

Work mode Weigand26
Read card speed < 0.2 seconds
Clock interval < 0.5 seconds
Induction distance 5-15 cm
Read the card type ID card
Frequency of 125 KHZ/card reader
Working temperature 25"C to 75"C
Working humidity 10% to 90%
Built-in antenna has a
Built-in LED red (blue) green double color LED
Built-in speaker buzzer
Support card ID card
Working voltage DC9-16 v
Working current < 60 ma
Weigand26 communication way
Communication distance d heptyl 100 meters, 1200 meters RS485 format, RS232 format 10 meters, 10 meters ABA format
Transmission way Real-time transmission
Device color Yellow/black/white/champagne/dark gray
Shell material of PVC and plastic spraying - > internal can be black resin adhesive (compliance with UL certification of environmental protection completely sealed, epoxy resin can effectively waterproof.)
