KR201E/M

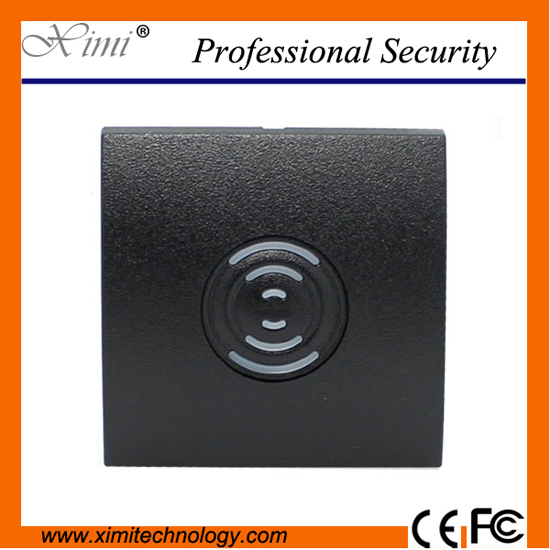

Product name : KR201E/M

Item : KR201E/M

Details :

125KHz Proximity /13.56MHz IC Card Reader.
· Read Range: Up to 10CM(125KHz)/5CM(13.56MHz).
· 26/34bit Wiegand (default).
· Easy to install on Metal Door Frame or Mullion.
· External LED Control.
· External Buzzer Contro.
· Indoor / Outdoor Operation.
· Solid Epoxy Potted
· Waterproof IP65
· Reverse Polarity Protection

Model	KR201E	KR201M
Read Range	Up to 10CM	Up to 5CM
Reading Time (Card)	≤300ms
Power / Current	DC 6-14V / Max.70mA
Input Port	2ea (External LED Control, External Buzzer Control)
Output Format	26bit Wiegand (default)	34bit Wiegand (default)
LED Indicator	2 Color LED Indicators(Red and Green)
Beeper	Yes
Operating Temperature	-10° to +70°C
Operating Humidity	10% to 90% relative humidity non-condensing
Color	Black
Material	ABS+PC with texture
Dimension (W x H x T)mm	868617
Weight	55g
Index of Protection	IP65
