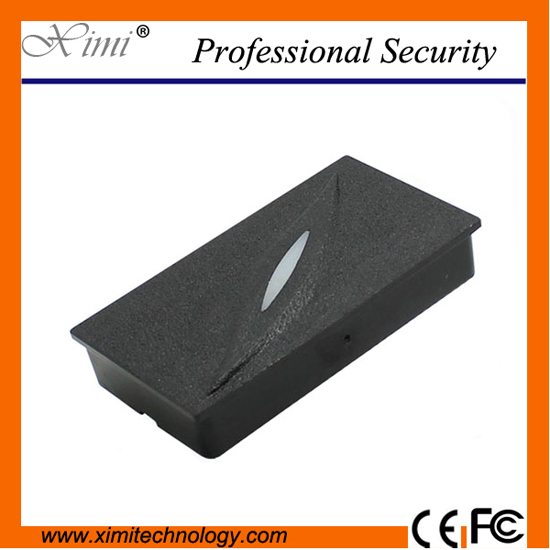

Kr101 External Led Control 2 Color Led Indicators Ip65 Wiegand 26 Door Access Control Rfid Card Proximity Reader

Product Description

Kr100 External Led Control 2 Color Led Indicators Ip65 Wiegand 26 Door Access Control Rfid Card Proximity Reader

1. 125KHz Proximity /13.56MHz Card Reader

2. Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)

3. 26/34bit Wiegand (default)

4. External LED Control

5. External Buzzer Control

6. Indoor / Outdoor Operation

7.Solid Epoxy Potted

8. Waterproof IP65

9. Reverse Polarity Protection

Kr100 External Led Control 2 Color Led Indicators Ip65 Wiegand 26 Door Access Control Rfid Card Proximity Reader

Read Range	Up to 5 - 10CM
Reading Time (Card)	<=300ms
Power / Current	DC 6-14V / Max.70mA
Input Port	2ea (External LED Control, External Buzzer Control)
Output Format	26/34bit Wiegand (default)
LED Indicator	2 Color LED Indicators(Red and Green)
Beeper	Yes
Operating Temperature	-20° to +65°C
Operating Humidity	10% to 90% relative humidity non-condensing
Color	Black
Material	ABS+PC with texture
Dimension(W x H x T)mm	784317.3
Weight	100g
Index of Protection	IP65
