R6

Product name : R6

Item : R6

Details :

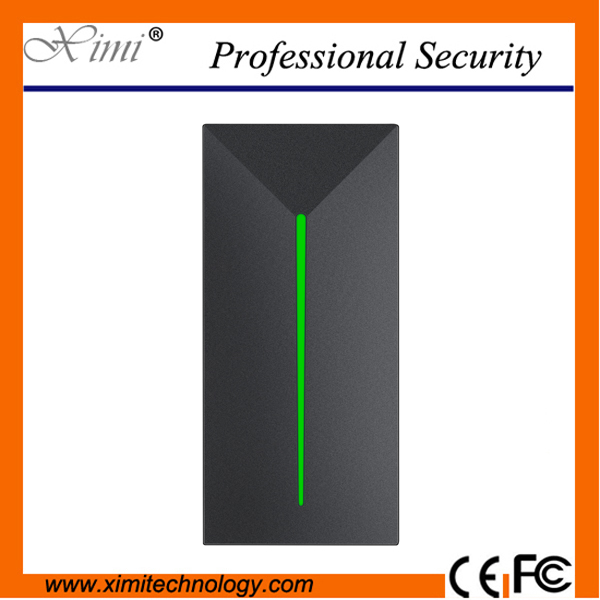

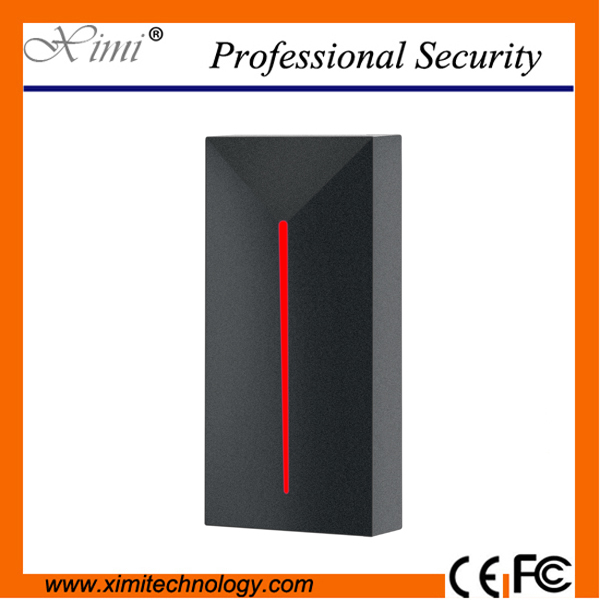

Wiegand 26 / 34 Bit Zk Access Control Reader Led Control 125Khz Proximity Card Reader Door Access Control

* 125KHz Proximity /13.56MHz IC Card Reader.

* Read Range: Up to 10CM(125KHz)/5CM(13.56MHz).
* 26/34bit Wiegand (default).
* Easy to install on Metal Door Frame or Mullion.
* External LED Control.
* External Buzzer Contro.
* Indoor / Outdoor Operation.
* Solid Epoxy Potted
* Waterproof IP65
* Reverse Polarity Protection

Wiegand 26 / 34 Bit Zk Access Control Reader Led Control 125Khz Proximity Card Reader Door Access Control

Model	R6E	R6M
Read Range	Up to 10CM	Up to 5CM
Reading Time (Card)	≤300ms
Power / Current	DC 6-14V / Max.70mA
Input Port	2ea (External LED Control, External Buzzer Control)
Output Format	26bit Wiegand (default)	34bit Wiegand (default)
LED Indicator	2 Color LED Indicators(Red and Green)
Beeper	Yes
Operating Temperature	-10° to +70°C
Operating Humidity	10% to 90% relative humidity non-condensing
Color	Black
Material	ABS+PC with texture
Dimension (W x H x T)mm	1105222
Weight	55g
Index of Protection	IP65
