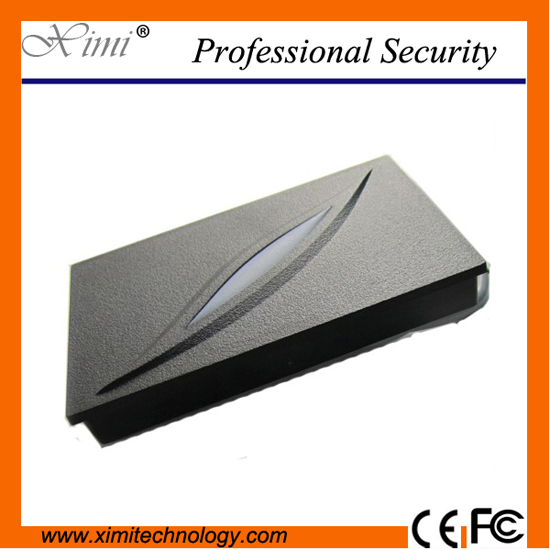

KR602 ZKteco WG26/34 RFID Card Reader

XIMI TECHNOLOGY LIMITED

Product Catalog

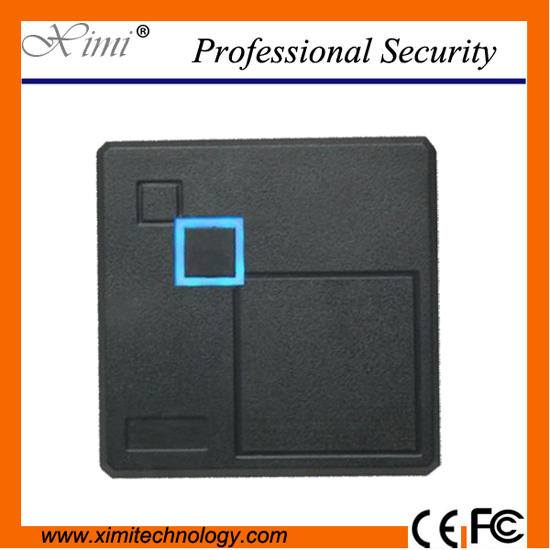

KR602E/M

Product name : KR602E/M

Item : KR602E/M

Details :

1. Read range of up to 10cm for proximity card and 5cm for Mifare card

2. External LED control

3. External Buzzer Control

4. Indoor/Outdoor operation

5. Solid Epoxy potted

6. Waterproof IP64

7. Reverse Polarity Protection

Model •KR602

Read Range	• KR602-E: Up to 10CM • KR602-M: Up to 5CM
Reading Time	• ≤300ms
Input Port	• External LED Control • External Buzzer Control
Output Port	• KR602-E: 26bit Wiegand (Default) • KR602-M: 34bit Wiegand (Default)
Power/Current	• DC 6-14V / Max.70mA
LED	• Red and Green LEDs
Operating Temperature	• -10°C to +65°C
Material	• ABS+PC with texture
Operating Humidity	• 10% to 90% relative humidity • non-condensing
Beeper	• Yes
Index of Protection	• IP64
