E20A

E20A
E20A
Product name : E20A
Item : E20A
Details :
Introduction:

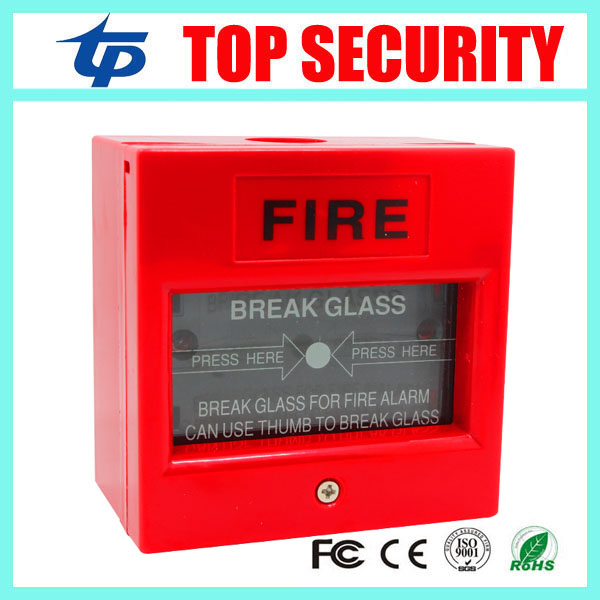

Glass broken button, also called the emergency push button, it is a series in the electric lock loop, to prevent the entrance guard system of card reader, push button or controller hardware failure inside personnel dozen don't open the door. Locked in the room, when faced with the above situation to press the emergency push button and the lock power will be disconnected, the door is opened.

Features:
Use the Fireproof Material, Accord with the Safe Request
Sandblast Panel with Elegant Style
Different colours (Green,red,yellow,white) options for different occasions
We will send Red color as default, if you need other color please feel free to connect us.

Specifications:
Dimensions
86Lx86Wx50H(mm)
Standard Structure
Fireproof Material, Easy to install
Current Rating
3A 36VDC Max
Output Contact
NO\NC\COM
Suitable for Door
Exit Door, Emergence Door
Operating temp
10~+55°C(14-131F)
Operating Humidity
0-95% (non- condensing)
Material Selection
Fireproof Material, Sandblast Finished
Weight
0.2kg
Standard Packing
10pcs
