Product name : E01
Item : E01
Details :
Product  Description:

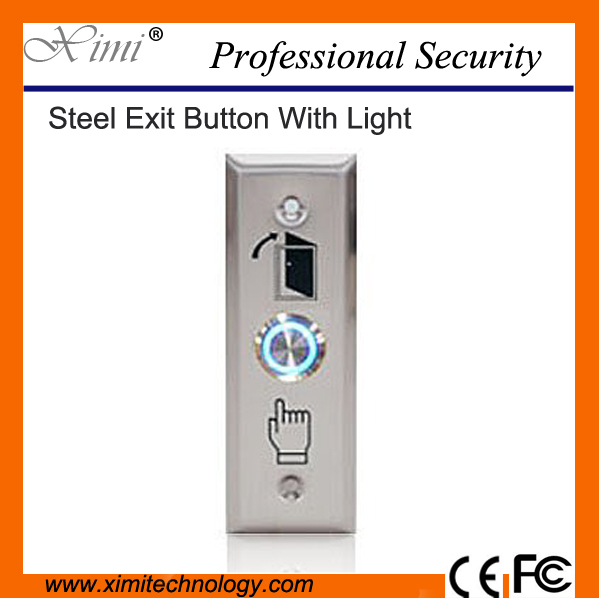

Door release buttons are the most common and the frequently used in the access control systems. They are often used in public authorities, banks, large, small and medium-sized enterprises, department stores and residences.



Specification:
Dimensions 91Lx28Wx20H(mm)
Input  DC12V
Contact Rating  3A@36VDC Max
Output Contact   NO\COM
Mechanical Life 500000 tests
Suitable for Door  Hollow Door
Operating temp  -20~+55 degree(14-131F)
Suitable Humidity 0-95% (relative humidity)
Color White, Blue (luminescence)
Weight  0.15kg
Standard Packing  60pcs/carton





Advantage

1.Stainless steel Panel with Elegant Style

2.500000 Cycles tests

3.Two Contact Output, Suitable for all kinds of Locks

4.The Best Choice for Access Control





Packing list

one push button per box , weight 0.2KG

standard packing : 60pcs per box
