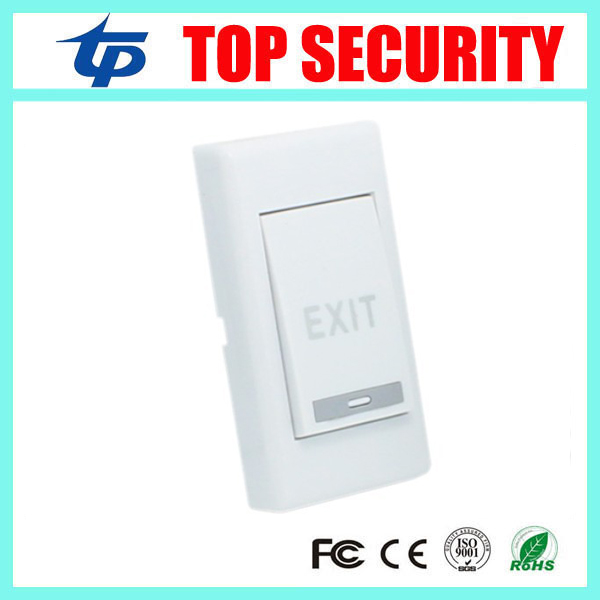

Product name : E19
Item : E19
Details :
Product  Description:

Door release buttons are the most common and the frequently used in the access control systems. They are often used in public authorities, banks, large, small and medium-sized enterprises, department stores and residences.



Specification:
Dimensions 86Lx42Wx20H(mm)
Input  DC12V
Contact Rating  3A@36VDC Max
Output Contact   NO\COM
Mechanical Life 500000 tests
Suitable for Door  All Kinds Doors
Operating temp  -20~+55 degree(14-131F)
Suitable Humidity 0-95% (relative humidity)
Color White
Weight  0.15kg
Standard Packing  60pcs/carton





Advantage
1.Plastic Panel with Elegant Style
2.500000 Cycles tests
3.Two Contact Output, Suitable for all kinds of Locks
4.The Best Choice for Access Control





Packing list
One push button per bag
Standard packing : 10pcs per box
