Product name : E07
Item : E07
Details :

Product Description:

Door release buttons are the most common and the frequently used in the access control systems. They are often used in public authorities, banks, large, small and medium-sized enterprises, department stores and residences.



Specification:
Dimensions 86Lx56Wx25H(mm)
Input  DC12V
Contact Rating  3A@36VDC Max
Output Contact   NO\COM
Mechanical Life 500000 tests
Suitable for Door  Hollow Door
Operating temp  -20~+55 degree(14-131F)
Suitable Humidity 0-95% (relative humidity)
Color   aluminium alloy
Weight  0.2kg
Standard Packing  60pcs/carton



Advantage

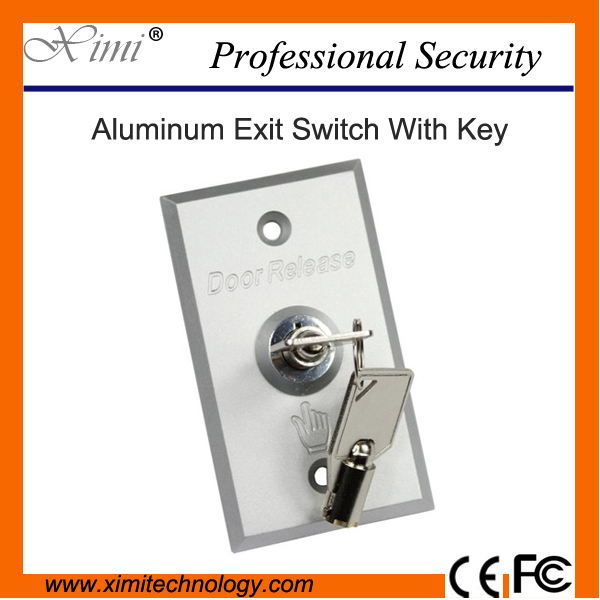

1.Aluminum Alloy Panel With Key

2.500000 Cycles Tests

3.Two Contact Output, Suitable for all kinds of Locks

4.The Best Choice for Access Control



Packing list

one push button per box , weight 0.2KG

standard packing : 60pcs per box
