Good Quality RFID Card Door Access Control TCP/IP Weigand26/34 Long Range Card UHF RFID Reader

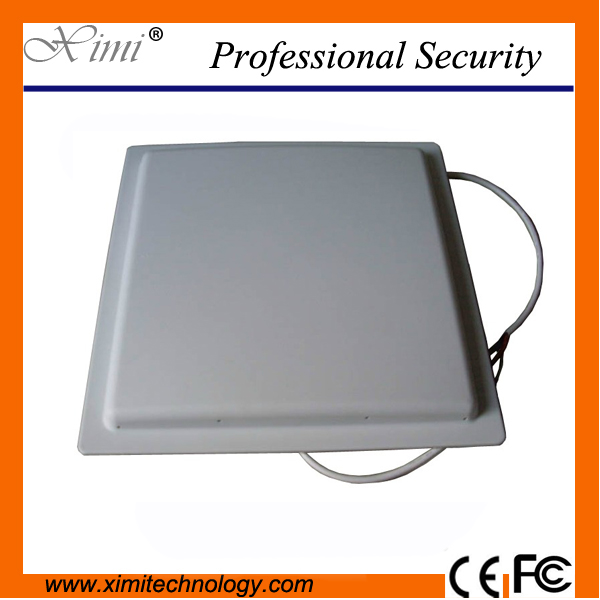

 G20 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

1. Parking management: Long range intelligent parking management and automatic charge without stop the car

2. Production line management: Goods identification for production flow

3. Auto Access control: Long range access control management for custom, sea port

4. Logistics and warehouse management

5. People auto registry for important meeting or exhibition

6. Automatic weighing and data capture.

Size:235x235x57mm

Working Voltage:DC +12V

Power:Max.12W

Frequency range:840-960MHZ(customized)

FM Mode:(FHSS)or fixed frequency option

Working mode:Timing automatic,External trigger control or software issued command

RF Output:30dBm   (adjustable)

Protocol:ISO18000-6C(EPC Class1 Gen2)or ISO18000-6B                                                                             Software:SDK,VBVC Demo

Antenna:8dBi gain circular polarization antenna( or customize)                                                                       Communication interface:RS232/RS485;Wiegand26/34; TCP/IP(option)

Reading distance:0-5M (up to tags)
