XM-ST105

XM-ST105
产品名称:XM-ST105
产品编号:XM-ST105
详细说明:


Fingerprint Rfid Card Reader Security Swing Full Height Turnstile Mechanism Counter Tripod Flap Turnstile Gate

The standard swing turnstile series are made of 304 stainless steel, which is rustproof, durable,
and can resist external destroy. Its structure of cuboid framework and the arm not only provide
people with civilized and orderly transit manner but also prevent the illegal in and out effectively.
Meanwhile, m the emergency, the arm will drop automatically.
According to different control modules, this series are full-auto type.





Fingerprint Rfid Card Reader Security Swing Full Height Turnstile Mechanism Counter Tripod Flap Turnstile Gate


* The whole system runs smoothly, long-life performance, high operation dependability and fast
   response.

* Alarm function, in case of illegal intrusion and reverse intrusion.
* Infrared sensor to prevent pinch pedestrians.
* Anti-breakthrough function. The gate is locked automatically until opening signal received.
* Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID
   card.

* LED indicator.
* Automatic reset function. If the user fail to pass within the prescribed time
  (default time is 5 seconds), the system will cancel the authority of the current user automatically.

* When power off, optical turnstile will open automatically,
   which is complying with fire safety requirements.

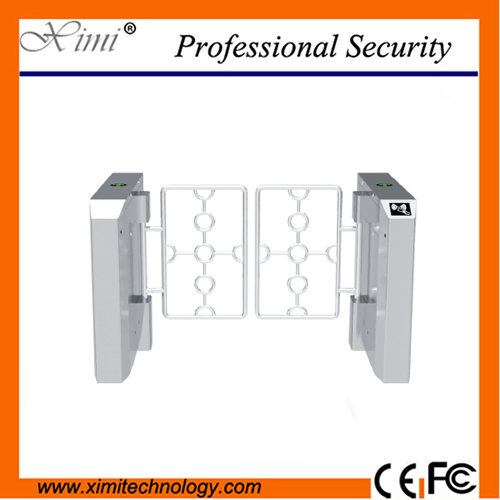

Swing Barrier Gate is designed to control pedestrians entering or exiting restricted areas,
   usually used of high pedestrian traffic flow in both directions.

* The body is made from brushed stainless steel which creates a seamless
   and elegant access point to blend into most indoor environment.

* It can be integrated with any kind of access controller system
   (e.g.: RFID device, Push button, Fingerprint and Biometric device).

* In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
Swing Barrier Gate are suit for community ,park ,
  Supermarket and some other projects for entrance solutions
..





Fingerprint Rfid Card Reader Security Swing Full Height Turnstile Mechanism Counter Tripod Flap Turnstile Gate



Model No                                               XM-ST105
Size(mm)
1200x280x980m
Unlock time                                           0.2s

Pass rake                                               35 person /minChannel width
Channel width                                        500--600mm
LED Indicator                                         Y
Driving voltage                                       100V~240V/50-60HZ
Motor voltage                                         24V
Environment                                          -25~+70
Working environment                             Indoor/Outdoor
Power consumption                                35W
Input                                                    12v dry contact
Emergency                                            Open when power off
